Newmac Equipment

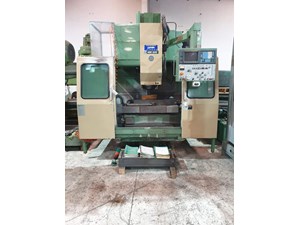

We have a Mori Seiki MV40A Vertical Machining Centre and Pallet Changer for sale

Stock # 4117

Technical Data Snapshot

Made in Japan
Pallet size 380mm x 700mm
X/Y/Z travel 600mm x 410mm x 510mm
Control Type Fanuc Series OM
Max spindle speed 8,000rpm
Spindle taper BT 40
Max programmable Feed Rate 5m/min X/Y/Z
Rapid Feed Rate 20m/min X/Y
Rapid Feed Rate 15m/min Z
Max Pallet Load 300kgs
Number of tools that can be held in the tool carousel 20
Spindle Motor Hp/Kw 5.5hp, 7.5kw 30 min rating
Flood type coolant System
Machine power requirements 3 phase 415 volt
Stroke for pallet 947.7mm
Pallet Change Time 12 seconds
Machine Dimensions for Transport, including control cabinet 2,500m wide x 2,260mm front to back x 2,650 mm high
Machine Weight Approx. 5,700kg
Pallet Changer Dimensions for Transport 1,030mm x 1,110mm x 1,900mm High
Pallet Changer Weight 550kg
Pallet Dimensions 1,000mm x 390mm x 150mm High
Transformer Dimensions for Transport 530mm x 650mm x 520mm High
Transformer Weight 300kgs

Accessories

10 x BT40 Tooling
2 x Pallets
Spindle Chiller
Coolant System
Worklight
Transformer
Machine Manuals


3 Phase Power

Please note this machine does not include a plug. When 3 phase machinery is decommissioned from industrial use, it is often disconnected  from a switchboard by an electrician, meaning no plug is fitted and in some cases the cable may also be absent. As a machinery dealer, we are not electricians and are unable to supply or fit plugs. Buyers will need to arrange connection through a licensed electrician.

We have not run this machine in our warehouse but it was working at Customers prior to it being de-commissioned.

This CNC Milling Machine is in our warehouse so please feel free to pop in to inspect the machine at your convenience.

We are always interested in purchasing metalworking machinery & surplus equipment. Should you be looking at Downsizing, Relocating, Closing Down or having machinery surplus to requirements, we would appreciate the opportunity to assist in any way we can.

We would like to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise that customers speak with their usual insurance company to take out transport insurance.

MORI SEIKI MV40A

We have an excellent used condition CNC Router/Milling Machine for sale

Stock # 4204

Technical Data Snapshot

Table size 750mm x 550mm
X/Y/Z travel 460mm x 540mm x 170mm
Control Type PC Based Flashcut CNC Software
Max spindle speed 30,000rpm
ER 25 Collet System
Spindle Motor 1.4kw
Machine power requirements 240 volt
Machine Dimensions for Transport, including cabinet 1,070  x 900 x 1,700mm high
Weight Approx. 400kgs

Includes the following accessories

Machine base and enclosure
Flashcut CNC Software
Windows based PC and Screen

We recommend customers visit our warehouse to inspect the machinery in person. Our team is more than happy to offer to test run the equipment to give you the peace of mind that it will perform to your requirements before making a purchase. That way, you can make an informed decision and feel confident in your investment.

Considering selling your machinery? We buy as well as sell machinery. Downsizing, relocating, closing down, or having surplus equipment. We are always on the lookout for quality machinery to buy. Please do not hesitate to contact us to discuss your machinery needs and how we can help you.

We would like to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise customers to take out transport insurance with their usual insurance company.

CNC ROUTER CNC ROUTER

Final Opportunity  Make an Offer Before Its Scrapped

This DeVlieg 3H-48 Spiramatic CNC jigmill has been in our stock for many years, and due to its age and limited market demand, we are planning to scrap it in the near future. (it's still a working machine)

Before we proceed, were giving customers a final chance to make an offer  any reasonable offer will be considered. This could be an opportunity to salvage parts, repurpose the machine, or put it back into use at a bargain price.

If youre interested, contact us now or visit us to inspect the machine before its gone for good!

Specifications are as follows for this cnc machine:

Retro fitted with Fagor 8025/30 CNC control in 1991
spindle dia 3"
spindle taper ISO 40
table size 48" x 35"
spindle travel (Z axis) 16"
horizontal travel (X axis) 48"
vertical travel of head (Y axis) 36"
Table retraction (w axis) 16"
spindle speeds 25 to 1200 RPM
Dimensions for Transport 3.7m x 3.3m x 3.5m (L x W x H)
Approx Weight 12 Tonne

1991 DEVLIEG 3H-48 Spiramatic CNC jigmill

We have a Deckel Maho DMC 63V vertical machining centre for sale

Technical Data Snapshot
Made in Germany
Year of manufacture 2003
Table size 800mm x 500mm
X/Y/Z travel 630mm x 500mm x 500mm
Control Type Heidenhain
Max spindle speed 10,000rpm
Spindle taper ST 40
Max programmable Feed Rate 30m/min
Rapid Feed Rate 30m/min
Max Table Load 500kgs
Number of tools that can be held in the tool carousel 24
Spindle Motor Hp/Kw 17.5hp, 13kw
Machine power requirements 3 phase 415 volt
Machine Dimensions for Transport, including control cabinet 2m wide x 3m front to back x 2.3m high
Weight Approx. 5 tons
Flood type coolant System

Accessories
BLUM laser system for tool setting & tool breakage detection. See photo for more info

We recommend customers visit our warehouse to inspect the machinery in person. Our team is more than happy to offer to test run the equipment to give you the peace of mind that it will perform to your requirements before making a purchase. That way, you can make an informed decision and feel confident in your investment.

Considering selling your machinery? We buy as well as sell machinery. Downsizing, relocating, closing down, or having surplus equipment. We are always on the lookout for quality machinery to buy. Please do not hesitate to contact us to discuss your machinery needs and how we can help you.

We would like to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise customers to take out transport insurance with their usual insurance company.

DECKEL MAHO DMC 63V VMC

e have a Mori Seiki DL20 MC Twin Spindle Twin Turret CNC lathe for sale

Stock # 4115

Specifications are as follows

Control Fanuc
Spindle nose A2-6 on both spindles
Spindle speed range 40 to 4000 rpm
Main motor HP/KW 15hp Head 1 and Head 2
Max turning dia 210mm Head 1 and 2
Max  turning length 230mm Head 1 and Head 2
Hole through spindle 61mm Head 1, 52mm Head 2
Twin Turrets 12 Tool Stations
25mm Square shank Tooling
40mm Boring Bar Tooing
Supply voltage needed 415 volt 59 KVA Power Rating
Overall dimensions Machine 3.7m x 1.6m x 1.92m high.
Weight Machine approx 7.9 tonne
Click here for printable PDF & price (will open in new tab)
Accessories included

Chip conveyor
Transformer
Bartec hydrodynamic barfeed unit
Collet chucks Head 1 and 2
Coolant Tank with 150 Litres Capacity
Features

12 station  twin tool turrets
Coolant system
Worklight


We recommend customers visit our warehouse to inspect the machinery in person. Our team is more than happy to offer to test run the equipment to give you the peace of mind that it will perform to your requirements before making a purchase. That way, you can make an informed decision and feel confident in your investment. We pride ourselves on providing exceptional customer service and believe that this personalized approach allows us to exceed your expectations.

We welcome any inquiries about the machine and invite you to contact us at

We would like to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise that customers speak with their usual insurance company to take out transport insurance.

Considering selling your machinery?

We are always interested in purchasing metalworking machinery & surplus equipment, if you have one machine or a number of machines you need gone, please feel free contact us here at Newmac Equipment.

MORI SEIKI DL20 MC

We have for sale a FMB  Turbo 5-42 Magazine Barfeed  in good used condition.

General Specifications

Overall Capacity 5mm -42mm max bar diameter
3.2m Bar Length
Servo Motor control
Pneumatic front bearing clamping
Takes D Type Barfeed Collets (None supplied with the machine)
Overall dimensions 4,400mmm x 800mm x 1,300mm high
Machine Manual and Spare Parts List Available as PDF Files
Weight appox 1000kgs

This FMB Magazine Barfeeder is being sold on behalf of a customer as surplus to their requirements.

Please feel free to call us for more information and to inspect the machine at your convenience.

We are always interested in purchasing metalworking machinery & surplus equipment, if you have one machine or a quantity of machines you want to sell, please feel free to give us a ring.

2002 FMB TURBO 5-42

We have a Hartford HV 60A Vertical Machining Centre for sale.

Stock # 4044

Specifications are as follows:
X Axis travel 1400 mm
Y Axis travel 680 mm
Z Axis travel 600mm
CNC control Fanuc OM
Table length 1500 mm
Table width 630 mm
Spindle taper BT50
Max. spindle speed 4,000 rpm
Spindle motor power 15 kW
Power requirements, 3 phase,  415 volt
Year of manufacture 1994
Weight 12,000 kg
Overall dimensions  3,920mm x 2,700mm x 2,940mm (High)

Comes with/accessories
Chip conveyors
Work light
24 position ATC
Transformer
Spindle Cooling Unit

We recommend customers visit our warehouse to inspect the machinery in person. Our team is more than happy to offer to test run the equipment to give you the peace of mind that it will perform to your requirements before making a purchase. That way, you can make an informed decision and feel confident in your investment. We pride ourselves on providing exceptional customer service and believe that this personalized approach allows us to exceed your expectations.

We would like to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise that customers speak with their usual insurance company to take out transport insurance.

Considering selling your machinery?

We are always interested in purchasing metalworking machinery & surplus equipment, if you have one machine or a number of machines you need gone, please feel free contact us here at Newmac Equipment.

HARTFORD HV 60A VERTICAL MACHINING CENTRE
